Monitored Power Supplies

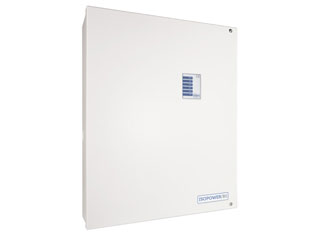

Inim Isopower/B5
Inim switched mode power supply with bus supervision for connection to PRIME and PRIMEX alarm panels, but can also be used as a stand-alone power supply. 12 VDC 5A + 1.2A for battery, in housng 375 x 466 x 92 mm. Space for 1 x 18Ah battery. The Isopower features an I-bus isolator. In addition to the bus supervision, the Isopower has 1 permanent 12Vdc output, two 12Vdc outputs controlled by events on the alarm panel, three O/C outputs for signaling faults (= mains fault, overload and general fault) to external devices, front panel with 6 signaling LED's. EN50131-1, EN50131-6 and INCERT certified
More info

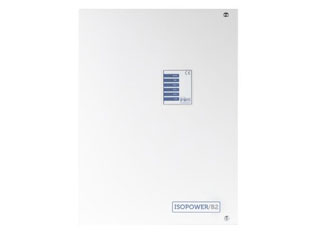

Inim Isopower/B2
Inim switched mode power supply with bus supervision for connection to PRIME and PRIMEX alarm panels, but can also be used as a stand-alone power supply. 12 VDC 2A + 1.2A for battery, in housing 275 x 374 x 86 mm. Space for 1 x 7Ah battery. The Isopower features an I-bus isolator. In addition to the bus supervision, the Isopower has 1 permanent 12Vdc output, two 12Vdc outputs controlled by events on the alarm panel, three O/C outputs for signaling faults (= mains fault, overload and general fault) to external devices, front panel with 6 signaling LED's. EN50131-1, EN50131-6 and INCERT certified
More info

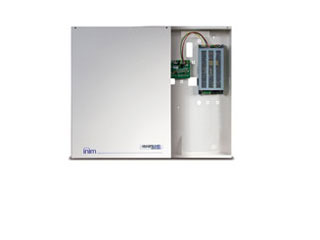

Inim SPS12160XG3
Inim switched-mode power supply, 12 VDC 5A + 1.2A for battery, in metal box 497 x 379 x 92 mm. Space for 1 x 18Ah battery. 3 power supply outputs 1.35mA max short-circuit protected, 1 relay output and 2 OC outputs for signaling errors and tampering. INCERT and EN50131-6 certified.
More info

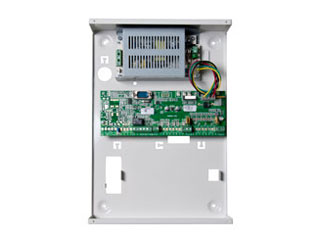

Inim SPS12060XG3
Inim switched-mode power supply, 12 VDC 2,5A + 1.2A for battery, in metal box 305 x 215 x 82 mm. Space for 1 x 7Ah battery. 3 power supply outputs 1.35mA max short-circuit protected, 1 relay output and 2 OC outputs for signaling errors and tampering. INCERT and EN50131-6 certified.
More info

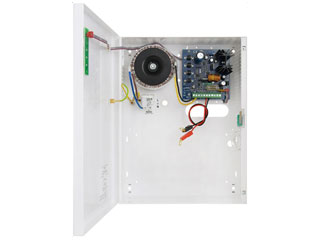

Pulsar AWZG2-12V3A-C
Pulsar, Power Supply 12V 3A metal housing 235x305x82mm, max 17Ah Battery, Tamper, fault outputs (battery failure, power supply failure). Grade 1-2
More info

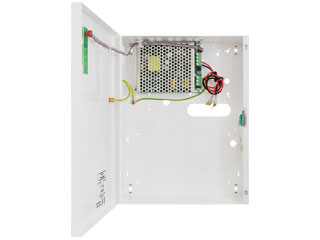

Pulsar HPSB-12V5A-C
Pulsar, switching power supply 13.8VDC 5A + 0.5A metal housing (HxWxD) 230 x 300 x 82mm, tamper switch, overvoltage and over discharge of the Battery. Max battery 17Ah
More info

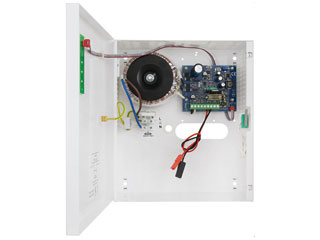

Pulsar AWZG2-12V2A-B
Pulsar, Power Supply 12V 2A metal housing 205x237x82mm, max 7Ah Battery, Tamper, fault outputs (battery failure, power supply failure). Grade 2
More info
Pulsar AWZG2-12V5A-C
Pulsar, Power Supply 12V 5A metal housing 305x305x105mm, max 17Ah Battery, Tamper, fault outputs (battery failure, power supply failure). Grade 2
More info
